EV Rider Transport 4M Manual Folding Mobility Scooter
Couldn't load pickup availability
☎ (888) 688-3779 / Mon-Fri 9am-6pm EST

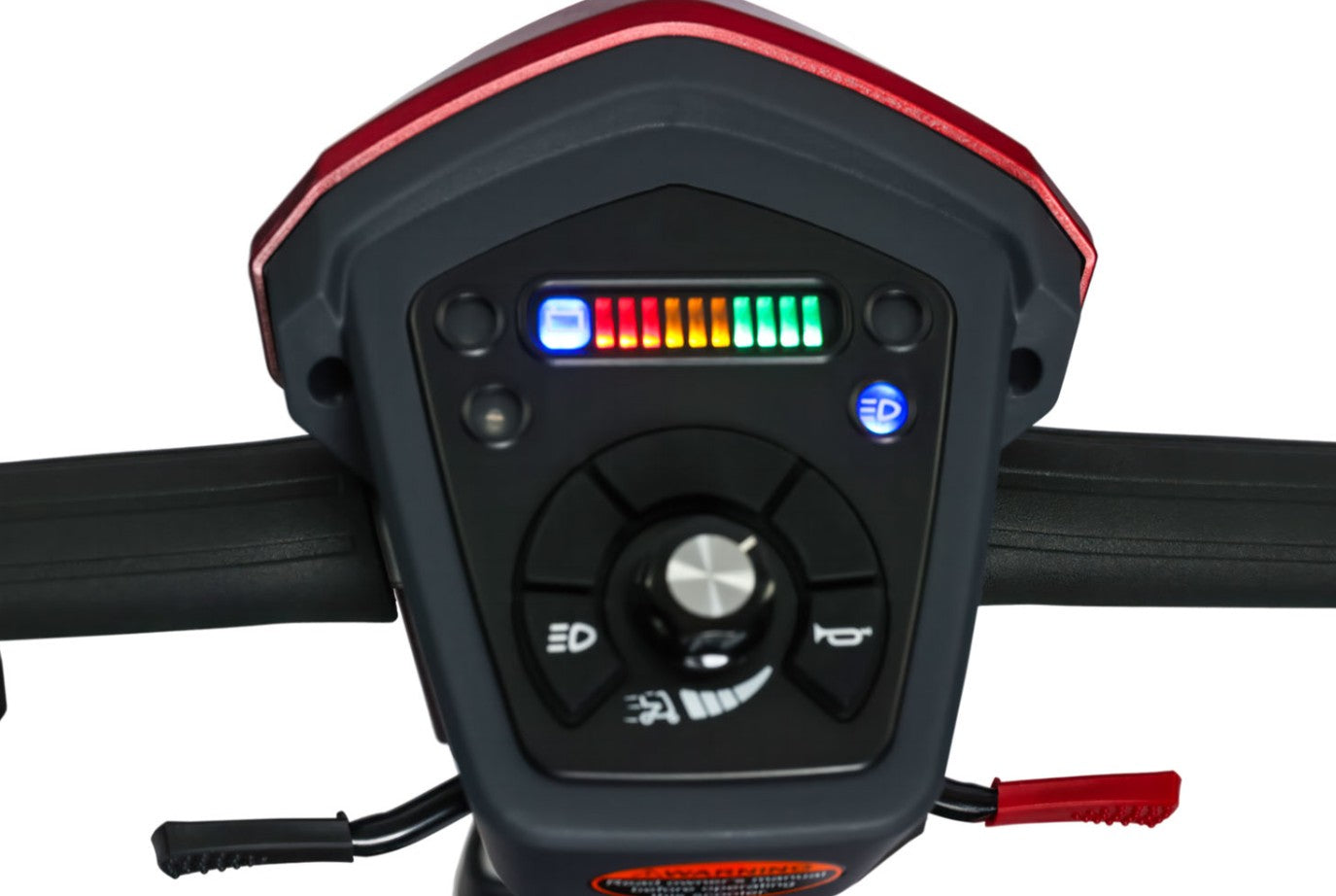

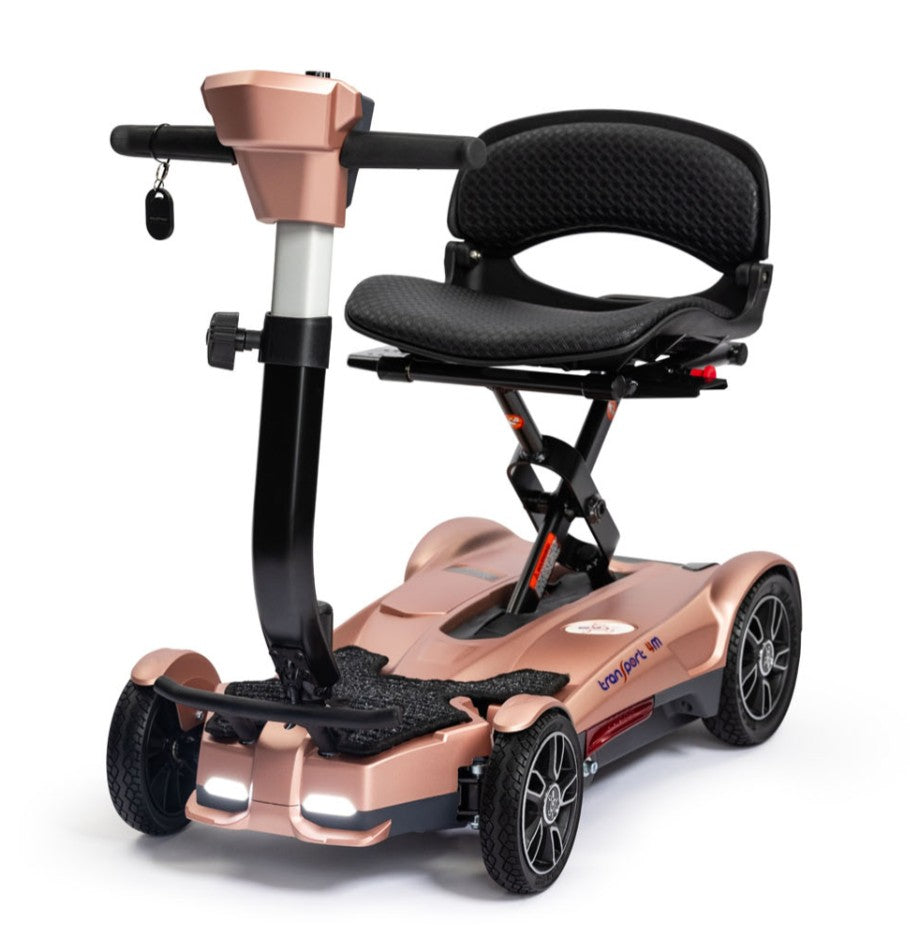

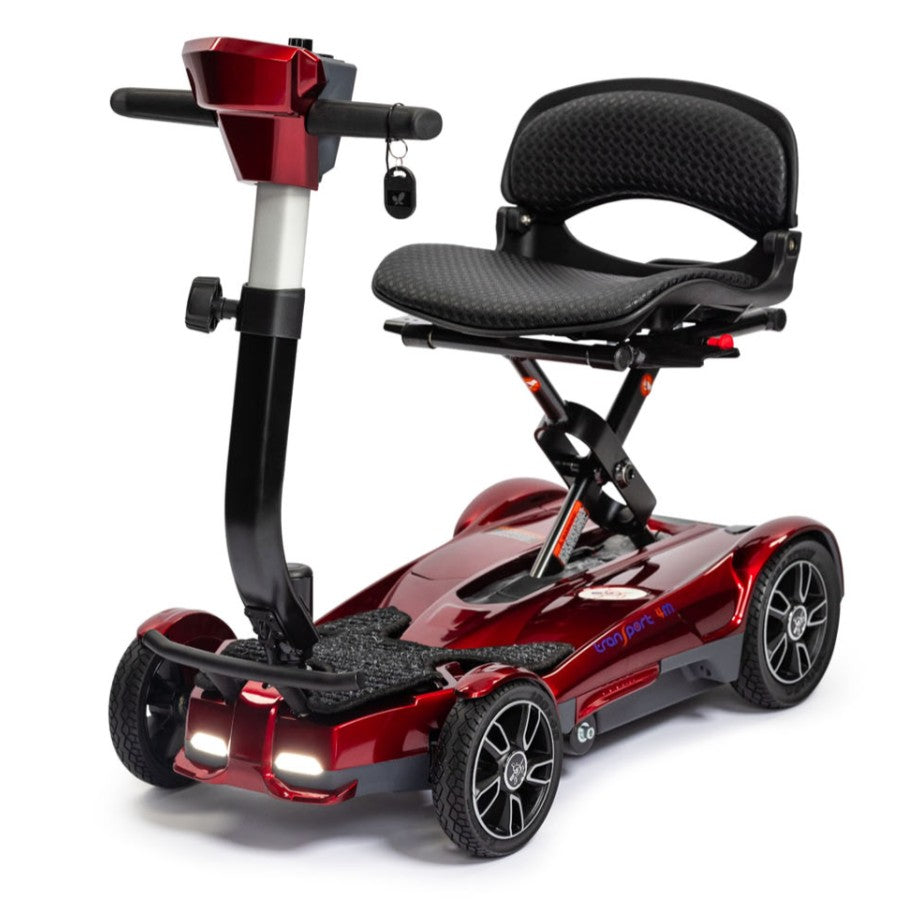

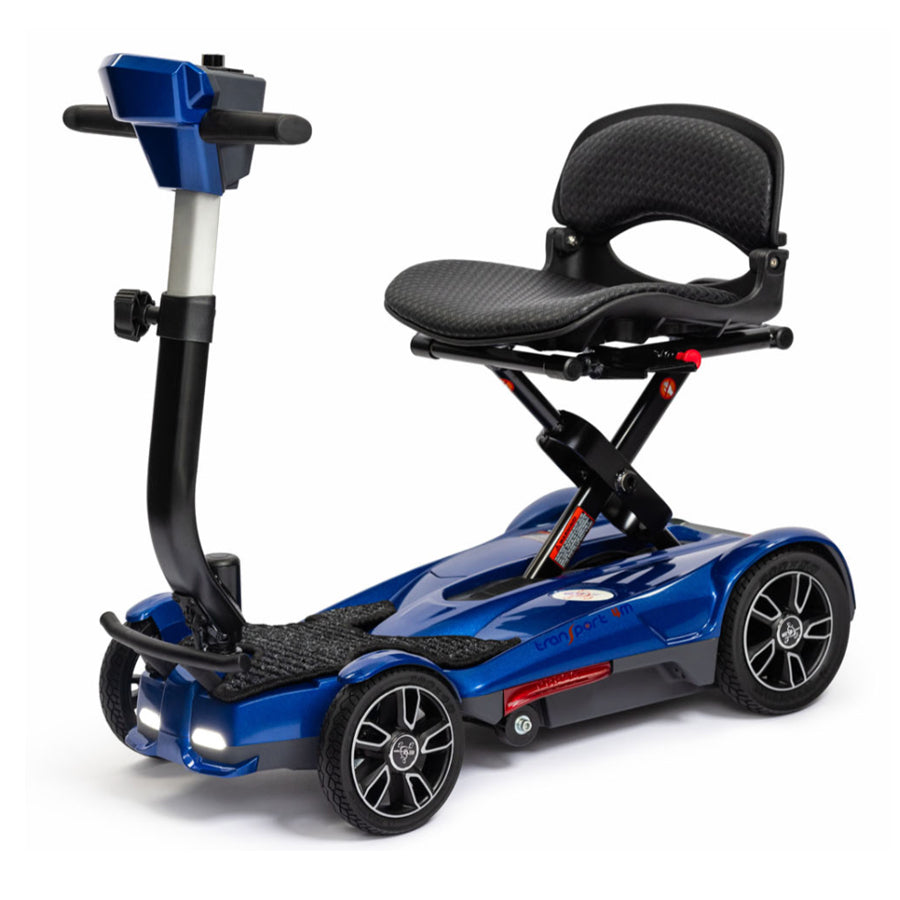

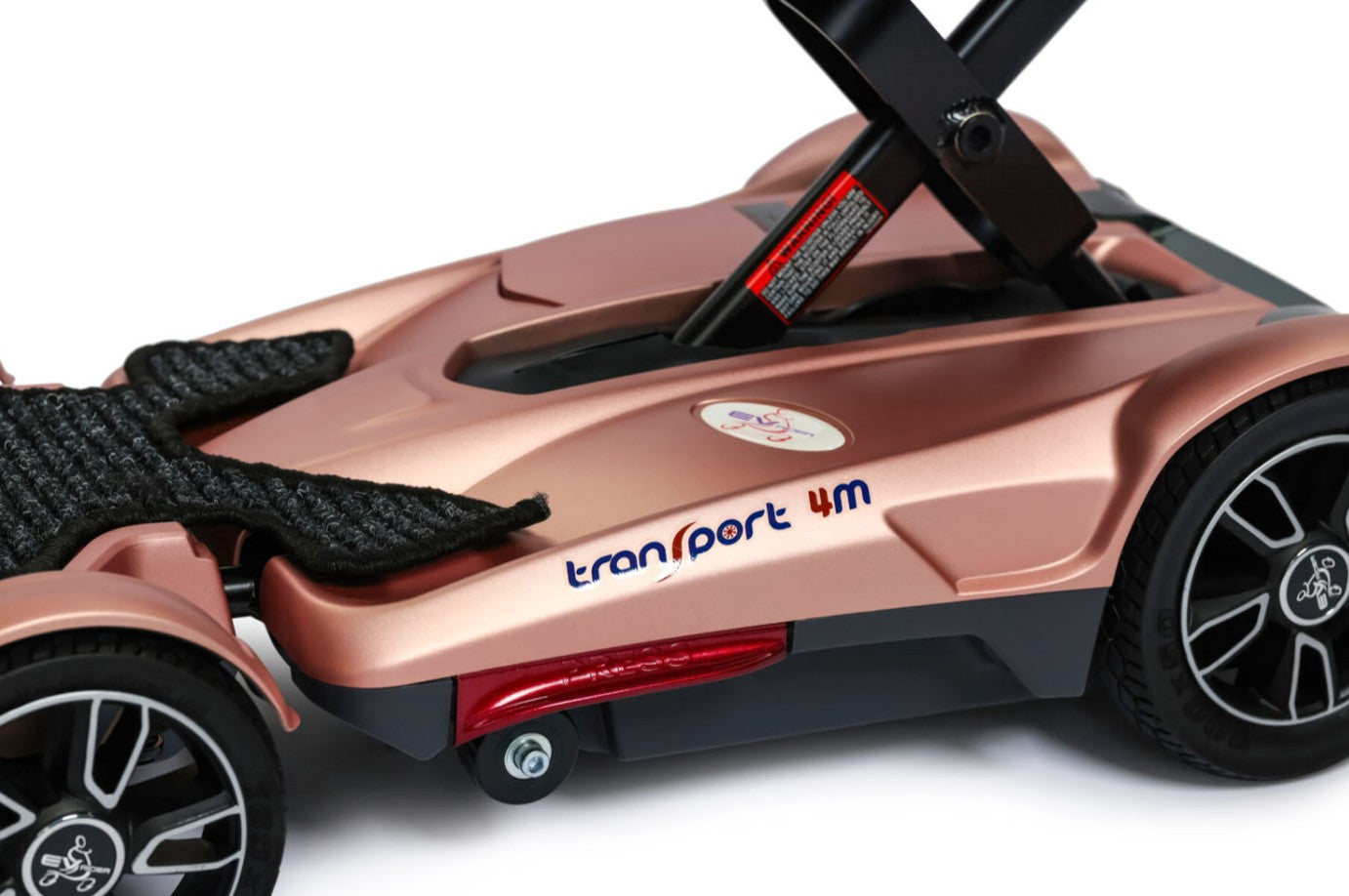

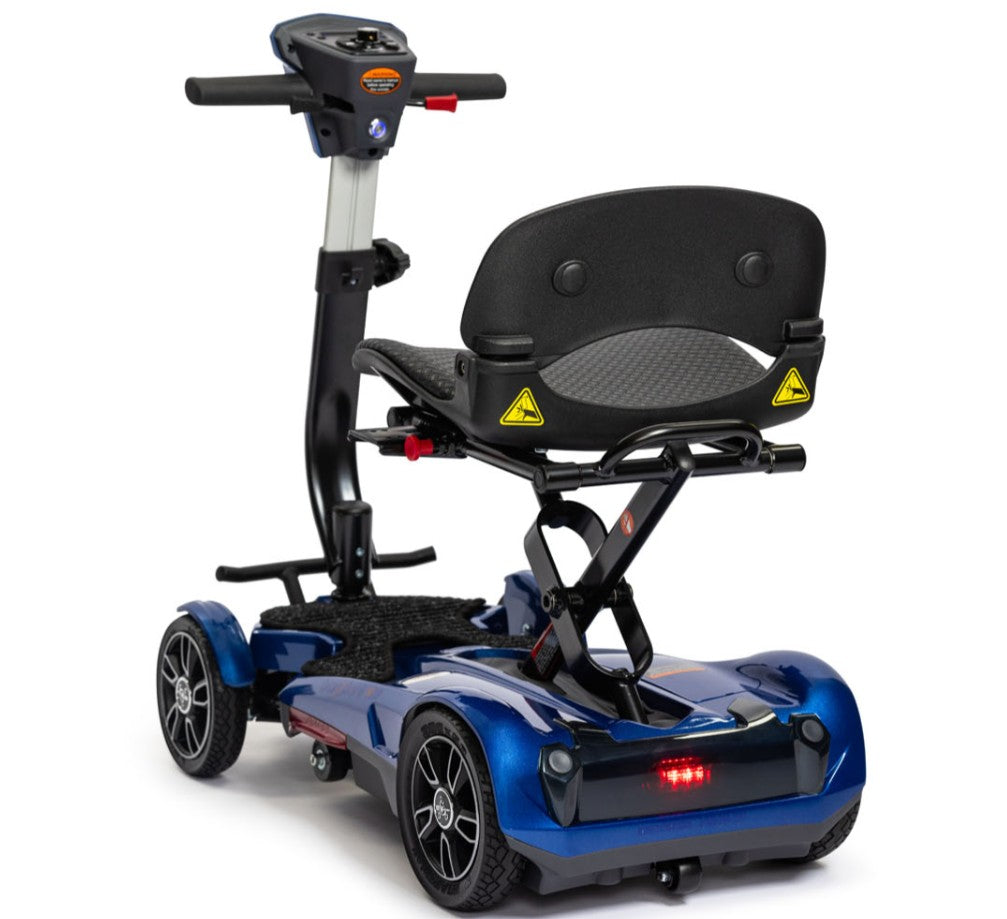

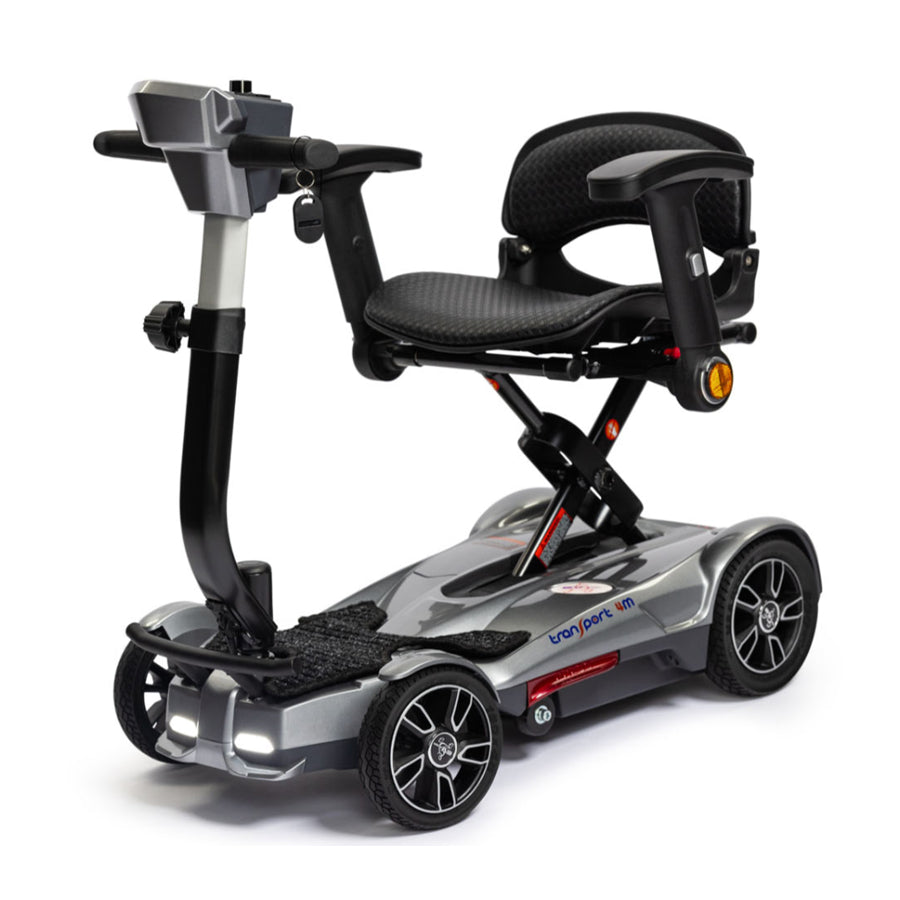

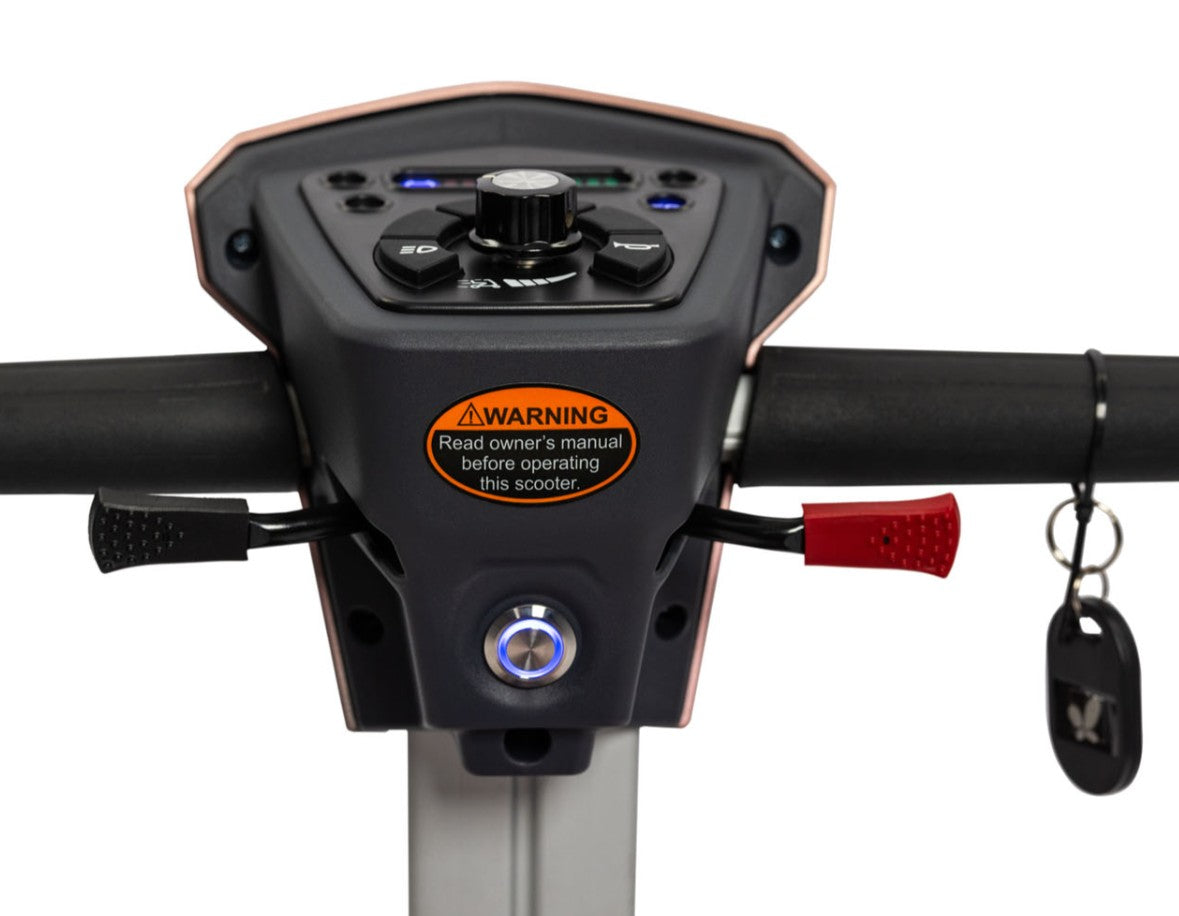

The Transport 4M is a compact four-wheel mobility scooter features a modern design with two-tone rims and a steering sensor that helps reduce speed while turning. The scooter includes LED lighting, an electronic key system, and a digital display for everyday operation.

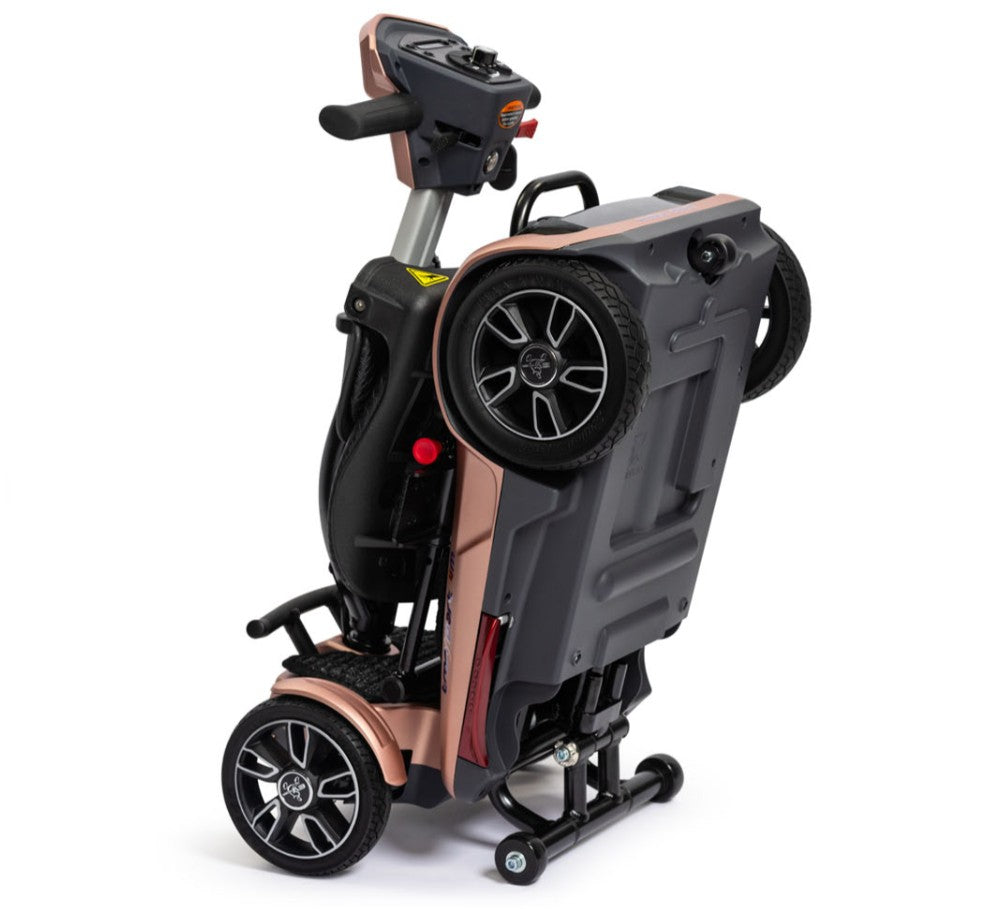

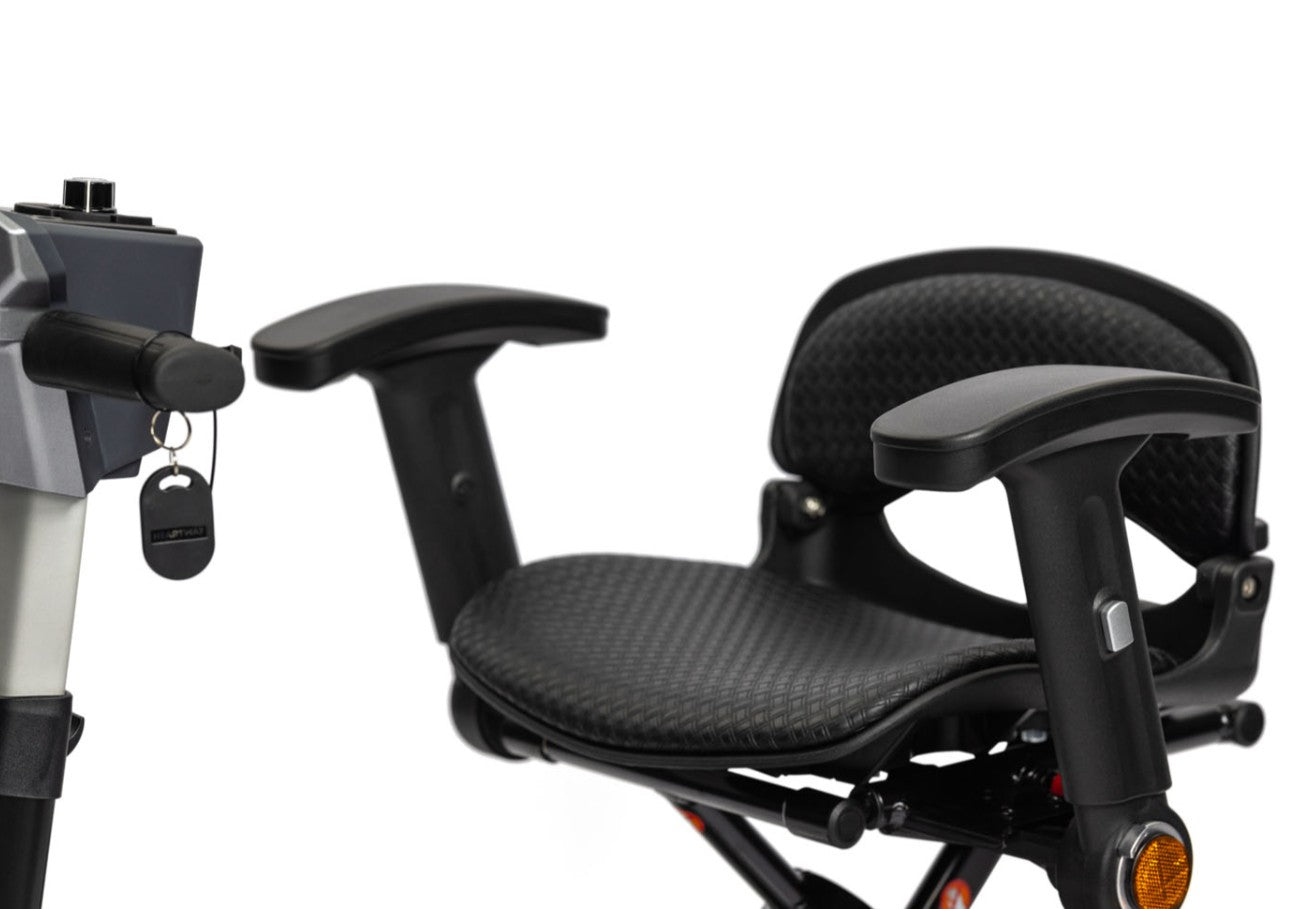

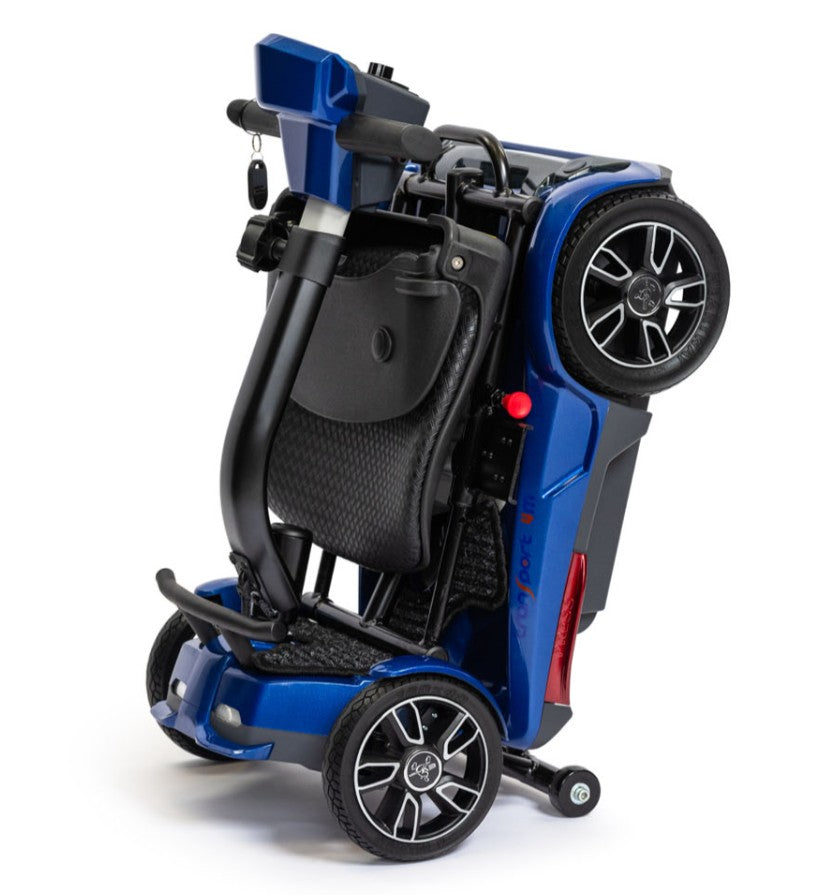

An adjustable tiller and optional armrests allow users to customize their seating position. The scooter uses a lithium battery designed to meet airline travel guidelines and folds into a compact size for easier transport and storage. Weighing approximately 55 lbs, it supports users up to 250 lbs and is suitable for travel and daily mobility.
Dimensions & Weights
| Overall Length | 33.5”in / 85cm |
| Overall Width | 23” in / 58.5cm |
| Overall Height (at Maximum Tiller Height) | 33.5”in / 85cm |
| Overall Height – at Minimum Tiller Height | 30” in / 76cm |
| Legroom – Floorboard Length x Width | 17″ in / 43 cm |
| Deck Height – Floorboard to Floor | 5.9″ in / 15 cm |
| Ground Clearance | 1.4″ / 3.6 cm |
| Turning Radius | 39.3” in / 100cm |
| Weight with Std. | 55 lbs / 25kgs |
| Weight without Batteries | 51.8 lbs / 23.5kgs |
| Seat Type | Folding Mobility Seat |
| Seat – Width & Depth & Height | 15″ W x 12″ D x 9″H / 38 cm x 30.5 cm x 23 cm |
| Seat – Cushion Thickness | 1″ in / 2.5 cm |
| Seat Height – Cushion to Deck | 15″ in / 38 cm |
| Seat Height – Cushion to Floor | 19.7″ in / 50 cm |
Specs
| Tire Type | Solid Tires |
| Rim Type Rear | Industrial Plastic |
| Rim Type Front | Industrial Plastic |
| Outside Diameter Rear | 7.9″ / 20 cm |
| Tire Width Rear | 2″ / 5 cm |
| Outside Diameter Front | 7.08” in / 18cm |
| Tire Width Front | 1.57” in / 4cm |
| Battery Type & Power | 24V 10.05Ah Lithium Ion x1 (included) |
| Brake System | Electromagnetic |
| Climbing Angle – Maximum Recommended | 3° |
| Charger Type | Off Board Li-Ion Charger 2 Amp 24 VDC, input: 100/240 Vac |
| Charging Time | 4 – 6 hrs |
| Controller | Dynamic R‐Series 50A |
| *Driving Range | Up to 8 miles |
| Load Capacity | 250 lbs / 115 kg |
| Motor & Drive Location | 180 watt 24 volt |
| Max Speed | 4 Miles/Hr/ 6KM/H |
| *Speed – Maximum | up to 3.7 mph |
| Colors | Blue, Silver, Rose Gold, Red |
| Tiller Type | T-Shape Type |
| Throttle Control Type | Pot Meter |
| Anti-Tipper Wheels-Rear | Rear Casters – Standard |
>> Download User's Manual
Thank you for shopping with Ever Ride USA. We want your experience from browsing to delivery to be simple, transparent, and fast. This Shipping Policy explains how we process and deliver your orders, what shipping options are available, and what to expect after you place an order. learn more
We stand behind the quality of our products and want you to feel confident in your purchase. This Return & Refund Policy outlines how returns, exchanges, and refunds are handled for products purchased from our online store. .. learn more
Three-Year Limited Warranty
All structural frame components—including the platform, seat post, and frame—are covered for three (3) years from the original date of purchase.
One-Year Limited Warranty
For one (1) year from the date of purchase, if any part or electronic component of the scooter is found to be defective in material or workmanship upon inspection, it will be repaired or replaced at the discretion of EV Rider, LLC at no cost for the part. Labor charges are not included. The purchaser is responsible for delivering the scooter to an authorized repair facility. Proof of purchase, the serial number, and the purchase date are required for all warranty claims. For warranty service, please contact the dealer or company from whom the EV Rider product was purchased. Batteries are also covered under a one (1) year warranty.
One-Year Warranty Exceptions
- Motor: The warranty does not cover cases where there is an increase in operational noise. Increased noise typically results from misuse or excessive strain on the scooter.
- Batteries: Batteries purchased separately or in addition to the batteries included with the scooter are covered by EV Rider for one year from the purchase date of the unit, except for the Stand-N-Ride scooter.
Warranty Exclusions
This warranty applies only to the original purchaser of the scooter and does not cover:
- Batteries that are provided free with the scooter (refer to the EV Rider invoice or packing slip for details).
- Consumable items that may require replacement due to normal wear and tear, including tires, tubes, belts, bulbs, upholstery, seating, motor brushes, fuses, plastic shrouds, and footrest covers.
- Damage caused by battery fluid leakage or spillage, abuse, misuse, accidents, negligence, improper operation, excessive loading, improper maintenance or storage, commercial use, or use outside normal operating conditions.
- Use of the scooter for purposes other than the purchaser’s personal mobility.
- Repairs or modifications made to any part of the scooter without prior written authorization from EV Rider, LLC.
